Windows Airplane Mode and Radio Management Architecture

Windows coordinates airplane mode across user-mode services, Human Interface Device (HID) hardware controls, and driver-level radio interfaces. The supplied Microsoft driver documentation describes the internal architecture, service boundaries, and diagnostic logging concepts for these components; however, it does not document consumer-facing repair procedures, registry modifications, or Device Manager steps for resolving a stuck or grayed-out Airplane Mode toggle in Windows 11.

Documented Windows Radio Management Architecture

According to Microsoft hardware and driver specifications, radio power control operates through specific architectural components and boundaries:

• System Radio State and Service Roles: System Radio State is a system-wide state that serves as the primary indicator of airplane mode. It is managed by the Radio Management Service (RmSvc, hosted in RmSvc.dll). RmSvc iterates across several media managers, including WlanRadioManager, BlueTooth, and WwanRadioManager. Each radio manager manages abstract radio instances corresponding to hardware modules.
• HID Airplane Mode Controls: Starting with Windows 8, Windows supports airplane mode controls via Human Interface Devices (HID) on battery-powered mobile systems. These controls reside on the Generic Desktop usage page (0x000C Wireless Radio Controls). Documented usages include stateless toggle buttons (Usage ID 0x00C6), LEDs (0x00C7), and physical slider switches (0x00C8). The ShellHW Detection service (SHSVCD.dll) runs in user mode as the HID client service monitoring for this Top Level Collection.

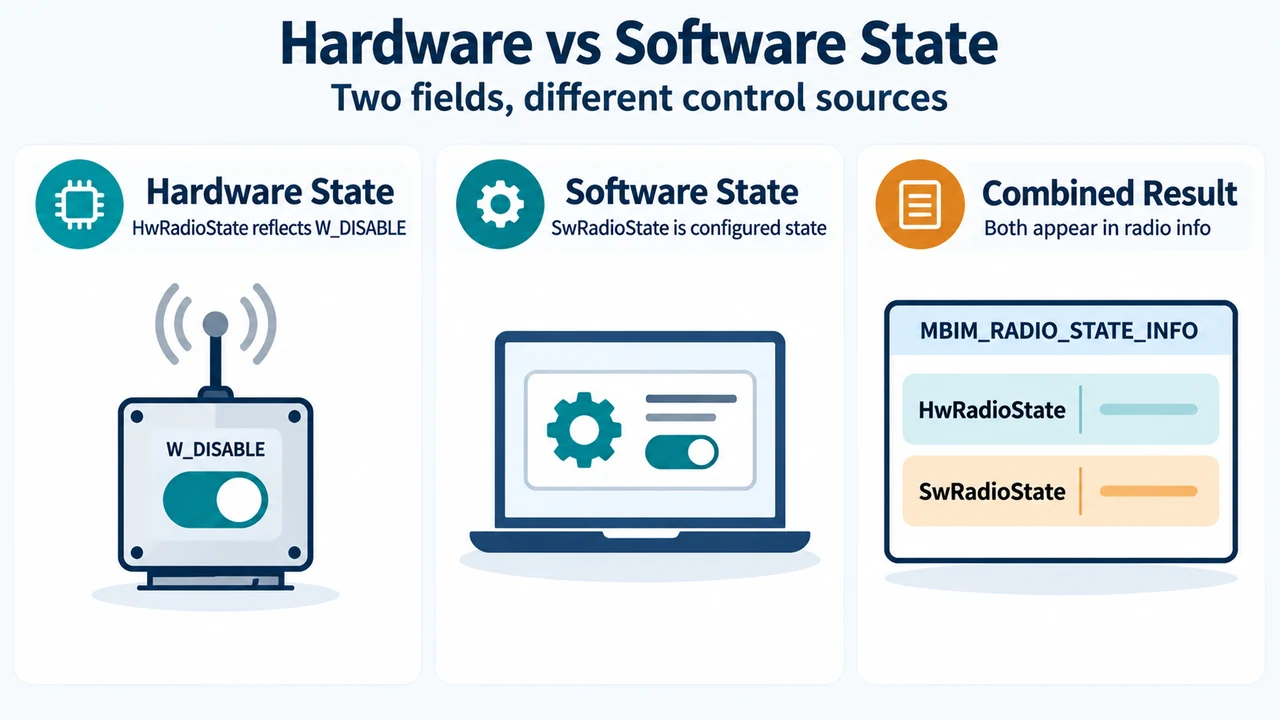

• Mobile Broadband Control Flow and Structures: In mobile broadband devices, requests from RmSvc or the UI pass via RPC to the WWAN Service (WwanSvc.dll), which issues commands to modem hardware using the command ID MBIM_CID_RADIO_STATE. The data structure returned in response to queries, set operations, and unsolicited notifications is MBIM_RADIO_STATE_INFO. This structure reports two discrete fields: HwRadioState (reporting the state of the physical W_DISABLE switch, defaulting to MBIMRadioOn if absent) and SwRadioState (reporting the software-configured state, set to MBIMRadioOff or MBIMRadioOn).
• Power State vs. Radio State: Device power states (such as active D0 and low-power Dx) and radio states are distinct but correlated concepts. In mobile broadband architecture, the kernel-mode driver MbbCx.sys manages device transitions between D0 and Dx, including the logic and control of radio state recovery before and after power transitions.

Diagnostic Investigation Boundaries

For investigating radio state behavior, the documentation establishes specific diagnostic boundaries based on failure scenarios:

• Global vs. Local Scenarios: Microsoft guidance instructs investigators to determine whether a failure is global (affecting system-wide radio state) or local (affecting a specific media type such as cellular). For general airplane mode issues, investigation focuses on RmSvc and WwanRadioManager. For UI display desynchronization or state discrepancies, analysis starts with WwanSvc. For sleep, hibernation, or D0/Dx power transitions, logging focuses on MbbCx.
• HID Stateless Button Reporting: When implementing a stateless toggle button, PC manufacturers are instructed to send the HID input report when the button is released rather than when pressed, because toggle buttons operate as relative inputs.
• Driver Testing Tools: Verification of mobile broadband radio states is documented through developer tools, including CellularRadioTest.dll (such as VerifyCellularRadioToggle and VerifyCellularRadioRecoveryToOnAfterAPM) and Hardware Lab Kit (HLK) tests (TestRadioStateSoftware and TestRadioStateHardware).

Research Method and Limitations

This article was prepared directly from supplied public Microsoft Learn driver architecture documentation covering HID airplane mode radio management and mobile broadband radio states. It does not incorporate hands-on hardware testing, lab benchmarks, or competing external coverage, as none was accessible. The available primary evidence documents driver APIs, HID report structures, and service communication flows; it contains no documented end-user troubleshooting workflows, Device Manager driver reinstallations, or registry modifications for unsticking grayed-out Windows 11 airplane mode switches.
